Stainless steel  support for beam



Description:

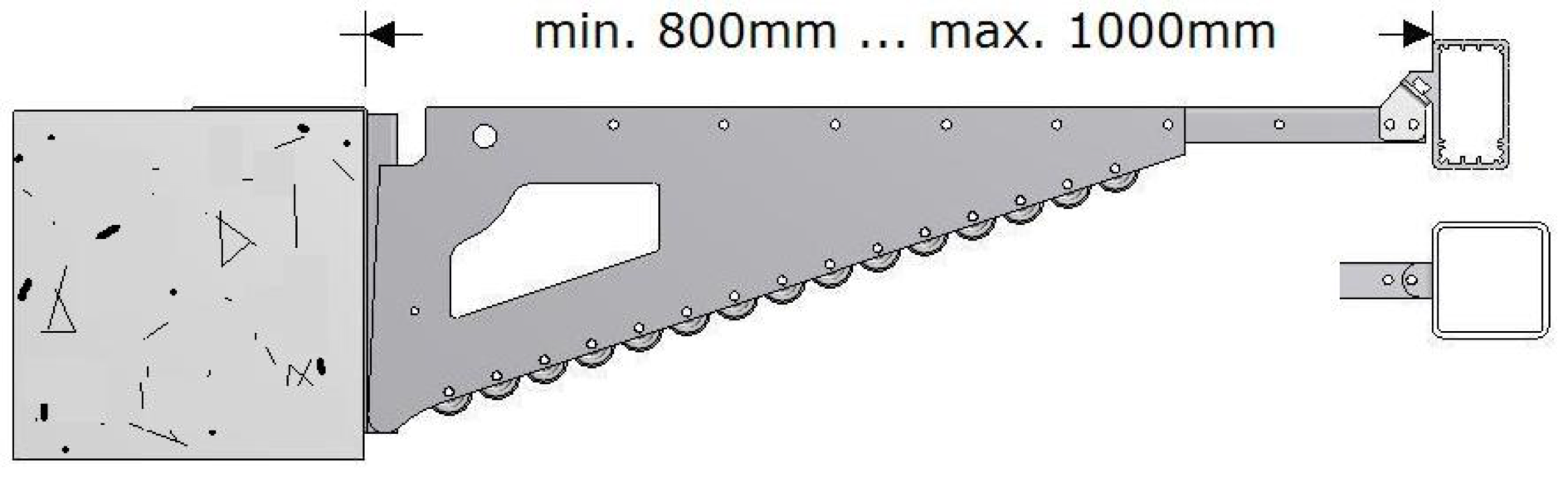

  • Dimensions: see – Drawing.
  • Provided with wheels to guide the slats while opening/closing the cover.
  • The support will be fixed with a The wall brackets are being screwed on top of the pool wall.
  • The length of the bracket is adjustable between 800 and 1000mm.
  • Order details:
    • Number of supports.




Remark:
In order to reduce bending of the beam, we recommend to use the right amount of brackets.
Swimming pool width:
5,0m < W < 7,0m                 = 3 centre supports
7,0m ≤ W < 8,5m                 = 4 centre supports
8,5m ≤ W < 10m                  = 5 centre supports
