ABOVE WATER LEVEL:

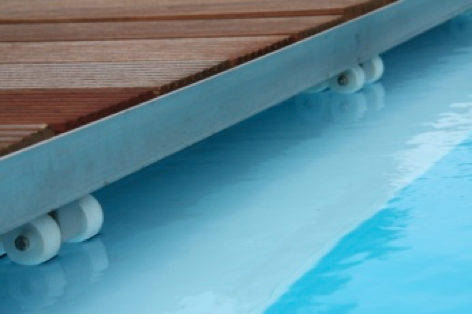

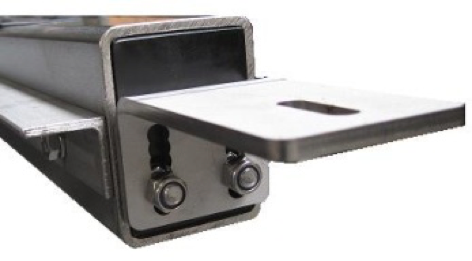

SS304-100x100-above water level(*)
Can only be used in a skimmer pool with low water level.
The beam has adjustable brackets to change the vertical position depending on the thickness of the coping stones.
If the beam is combined with a decking in wood or PVC, the beam will be finished respectively with a wooden plank or a white powder coated ALU profile. In this case, the decking rests on top of the beam. HxW = 100x100x5mm. If no decking is ordered, the beam will come unfinished.

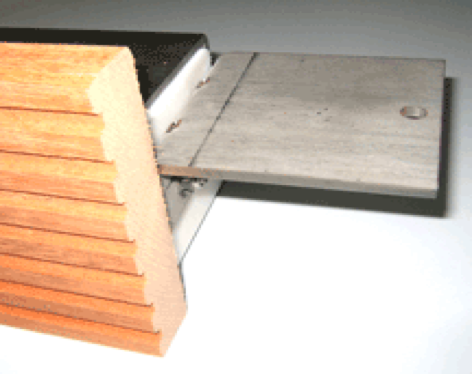

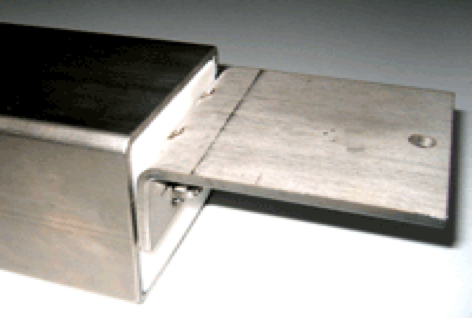

SS304-80x60 with L
A brushed beam with screwed L-profile which carries the decking, for pools up to 4m wide. The beam has adjustable brackets to change the vertical position depending on the thickness of the coping stones. HxW = 80x60x3mm

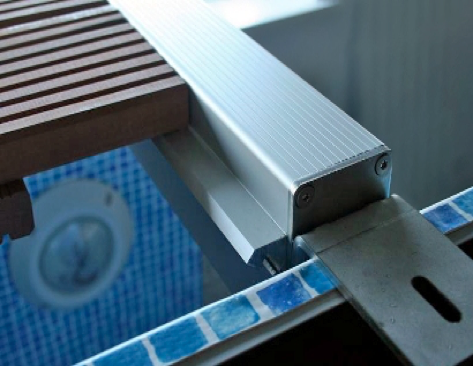

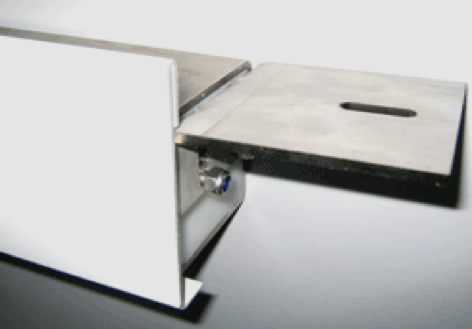

ALU 110x65-above water level(*)
Beam in anodised aluminum, adjustable in height, provides support for wooden or plastic decking. HxW = 110x65x5mm
SS316-L30x30 for (adjustable) brackets
SS profile to fix on the adjustable brackets. HxW = 30x30x3mm
SS316-L50x50 for (adjustable) brackets
SS profile to fix on the adjustable brackets. HxW = 50x50x5mm

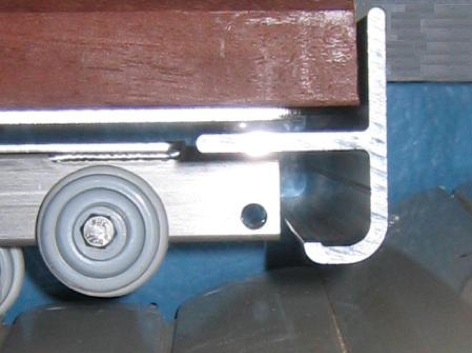

J-Profile ALU for (adjustable) brackets
Anodised aluminum profile available in lengths of 4,5 and 6m. If longer lengths are required, 2 or more profiles are joined together with a special kit.

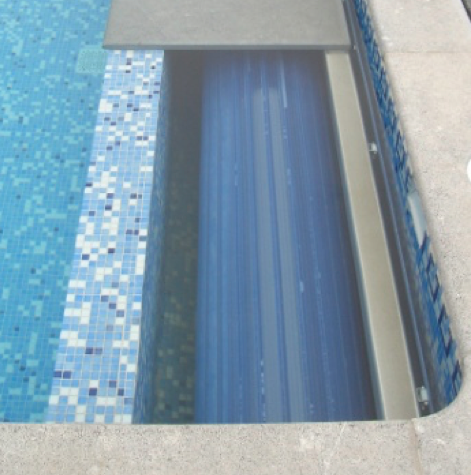

UNDER WATER:

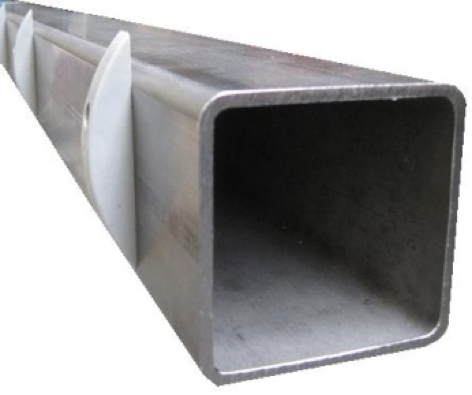

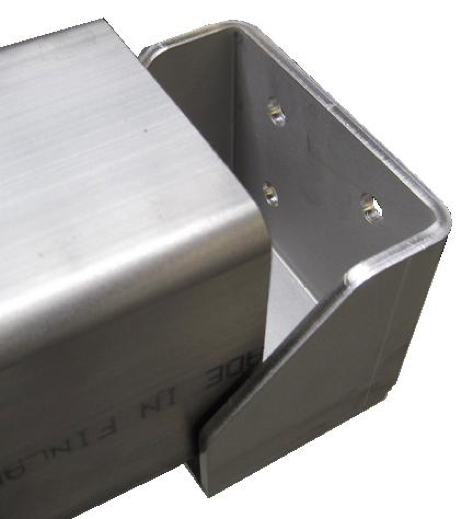

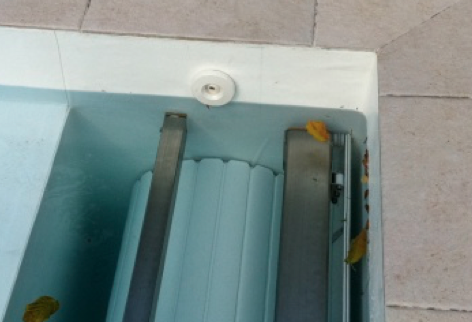

SS304-100x100-guiding(*)
This beam can be used (max length 10m) to cover an underwater cover pit. The beam has plastic guidings for the slats and mounting brackets. HxW = 100x100mm
SS316-100x100-guiding(*)
This beam can be used (max length 10m) to cover an underwater cover pit. The beam has plastic guidings for the slats and mounting brackets. HxW = 100x100mm
SS316-100x50-guiding(*)
This beam can be used (max length 10m) to cover an underwater cover pit. The beam has plastic guidings for the slats and mounting brackets. HxW = 100x50mm

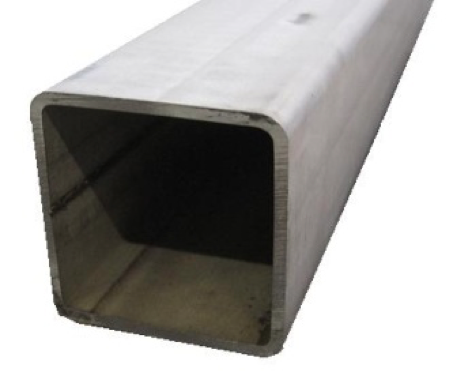

SS304-100x100-naked(*)
Square beam without guidings. It is used as an (extra) structure to support for example heavy tiles. Material = SS304. HxW = 100x100mm
SS316-100x100-naked(*)
Square beam without guidings. It is used as an (extra) structure to support for example heavy tiles.
Material = SS316L. HxW = 100x100mm
SS316-100x50-naked(*)
Beam without guidings in SS316L. It is used as an (extra) structure to support for example heavy tiles. HxB = 100x50mm

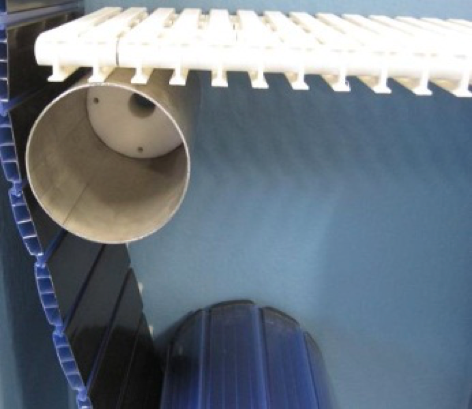

SS316-Tube 139mm
Alternatively a round stainless steel beam can be used. The profile with a diameter of 139,7mm and a wall thickness of 2mm doesn’t only support the panel but also guides the slats when opening/closing the rollo cover.

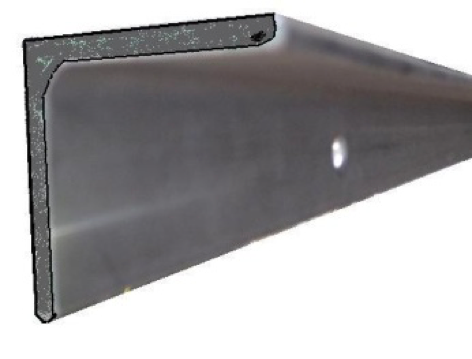

SS316-L30x30 for wall
L-profile to be mounted in the cover pit. It has mounting holes and accessories like plugs and screws.
HxW = 30x30x3mm
SS316-L50x50 for wall
L-profile to be mounted in the cover pit. It has mounting holes and accessories like plugs and screws.
HxW = 50x50x5mm
(*)Starting from a certain length extra supports are added automatically to prevent the beam from bending too much. These supports can also be ordered separately in case of a heavier load.

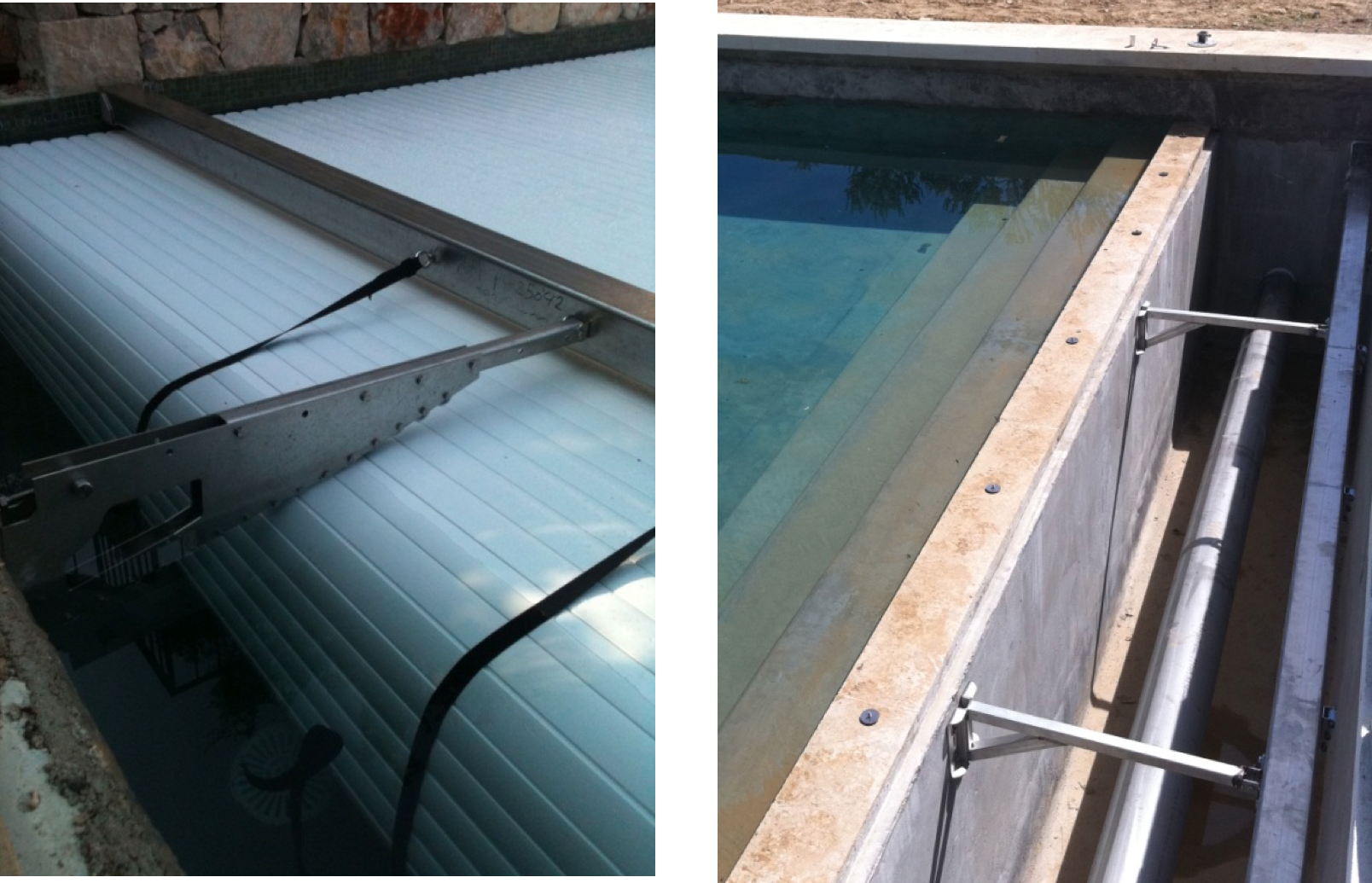

Above water Under water
MONTAGE ONDER WATER:
RVS304-100x100-geleidingen(*)
Deze balk kan gebruikt worden (tot max. 10m lengte) om een onderwaternis af te dekken. Voorzien van lamelgeleidingen en van ophangsteunen. Materiaal = RVS304. HxB = 100x100mm
RVS316-100x100-geleidingen(*)
Balk voor onderwater nis in RVS316L. Voorzien van lamelgeleidingen en ophangsteunen.
HxB = 100x100mm
RVS316-100x50-geleidingen(*)
Balk voor onderwater nis in RVS316L. Voorzien van lamelgeleidingen en ophangsteunen. Bruikbaar tot badbreedtes ≤ 4m. HxB = 100x50mm
RVS304-100x100-naakt(*)
Vierkante balk zonder geleidingen. Te gebruiken als (extra) draagstructuur voor bvb. zware tegels. Materiaal = RVS304. HxB = 100x100mm
RVS316-100x100-naakt(*)
Vierkante balk zonder geleidingen in RVS316L. Te gebruiken als (extra) draagstructuur voor bijv. zware tegels. HxB = 100x100mm
RVS316-100x50-naakt(*)
Balk zonder geleidingen in RVS316L. Te gebruiken als (extra) draagstructuur voor bijv. zware tegels. HxB = 100x50mm
RVS316-Buis 139mm
Als alternatief voor de balken kan een ronde buis met diameter 139mm en een wanddikte van 2mm worden gebruikt. Deze buis zorgt niet alleen voor de ondersteuning van het afdekpaneel, maar geleidt ook de lamellen bij het openen/sluiten van de afdekking.
RVS316-L30x30 voor wand
L-profiel voor bevestiging aan de wand. Voorzien van bevestigingsgaten en toebehoren zoals pluggen en houtdraadbouten. HxBxD = 30x30x3mm
RVS316-L50x50 voor wand
L-profiel voor bevestiging aan de wand. Voorzien van bevestigingsgaten en toebehoren zoals pluggen en houtdraadbouten. HxBxD = 50x50x5mm
(*)Vanaf een bepaalde lengte worden er standaard extra steunen voorzien tegen het doorbuigen. Ze zijn ook apart verkrijgbaar.
Boven water Onder water
