Adjustable bracket (770 / 950 / 1200)
Description:
- Maximum load/bracket = 150 Kg.
- Provided with wheels to guide the cover slats during opening/closing.
- The support is being fixed with a bracket on top of the pool wall.
- Place the support with an intermediate distance of about 75cm.
- Order details:
- Number of supports.

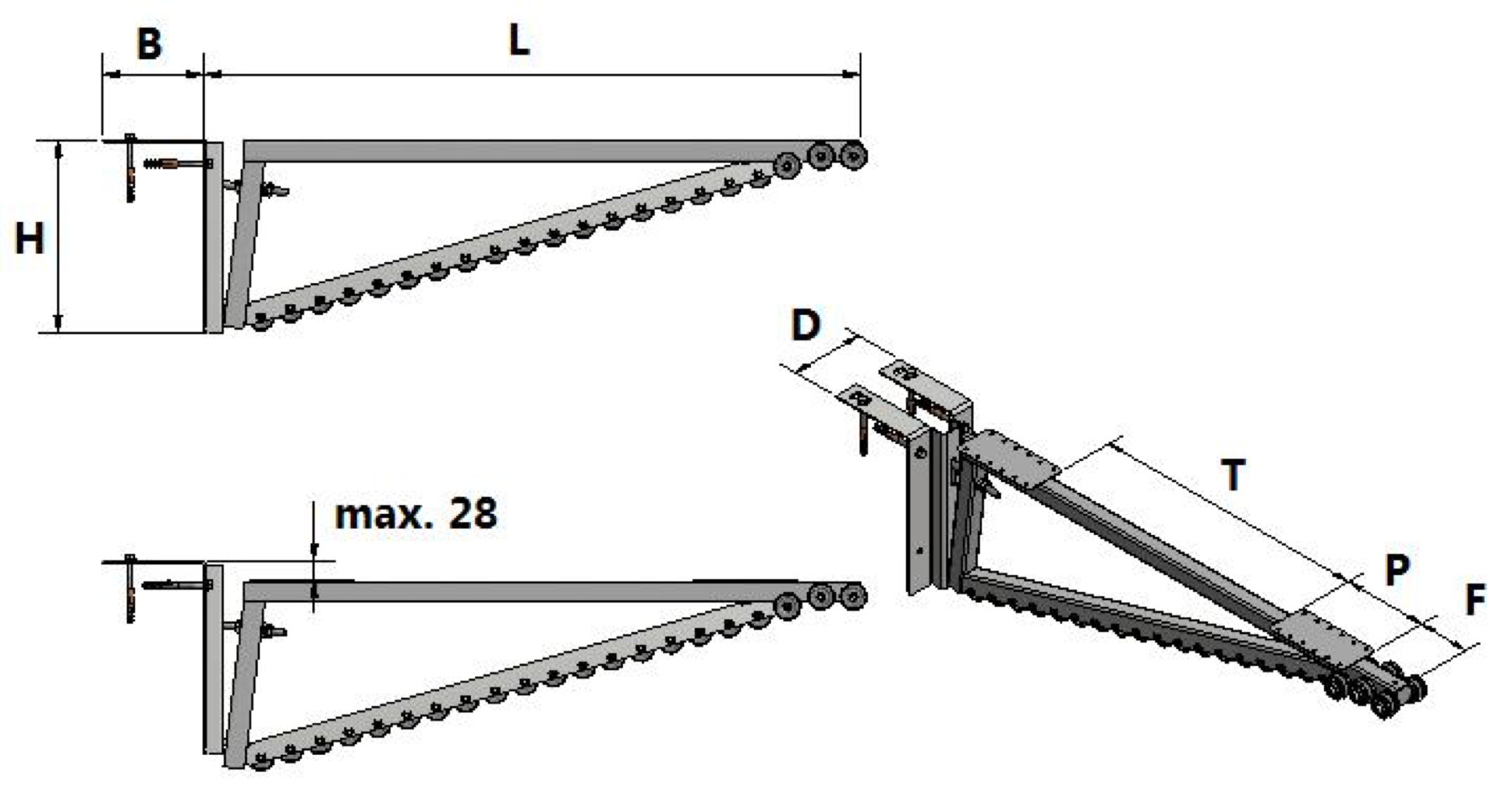

(Dimensions in mm)
|
L |
B |
H |
D |
T |
P |
F |
|
770 |
150 |
280 |
130 |
300 |
150 |
90 |
|
950 |
490 |
|||||
|
1200 |
550 |
200 |
