Following types are possible:
- 3 way 50
- 2 way 63
- 3 way 50 manual

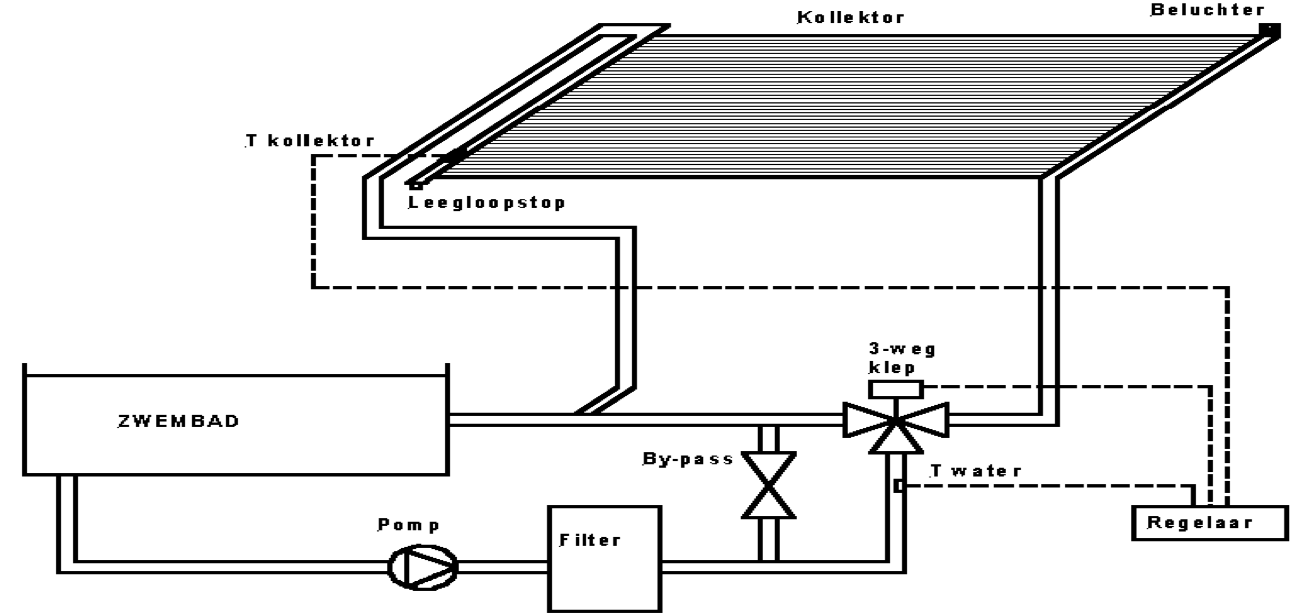

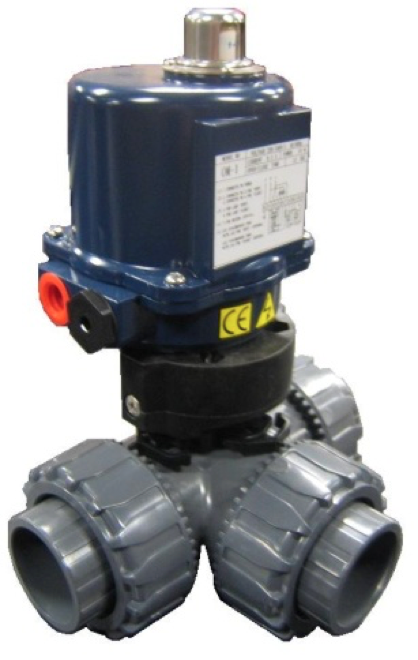

3 WAY 50
An electrical 3 way valve in combination with a control box is placed in the circuit of the filter installation, sending the water after the filter directly to the pool or first to the solar panels.
A bypass-valve is recommended in order to regulate the flow going through the solar panels.

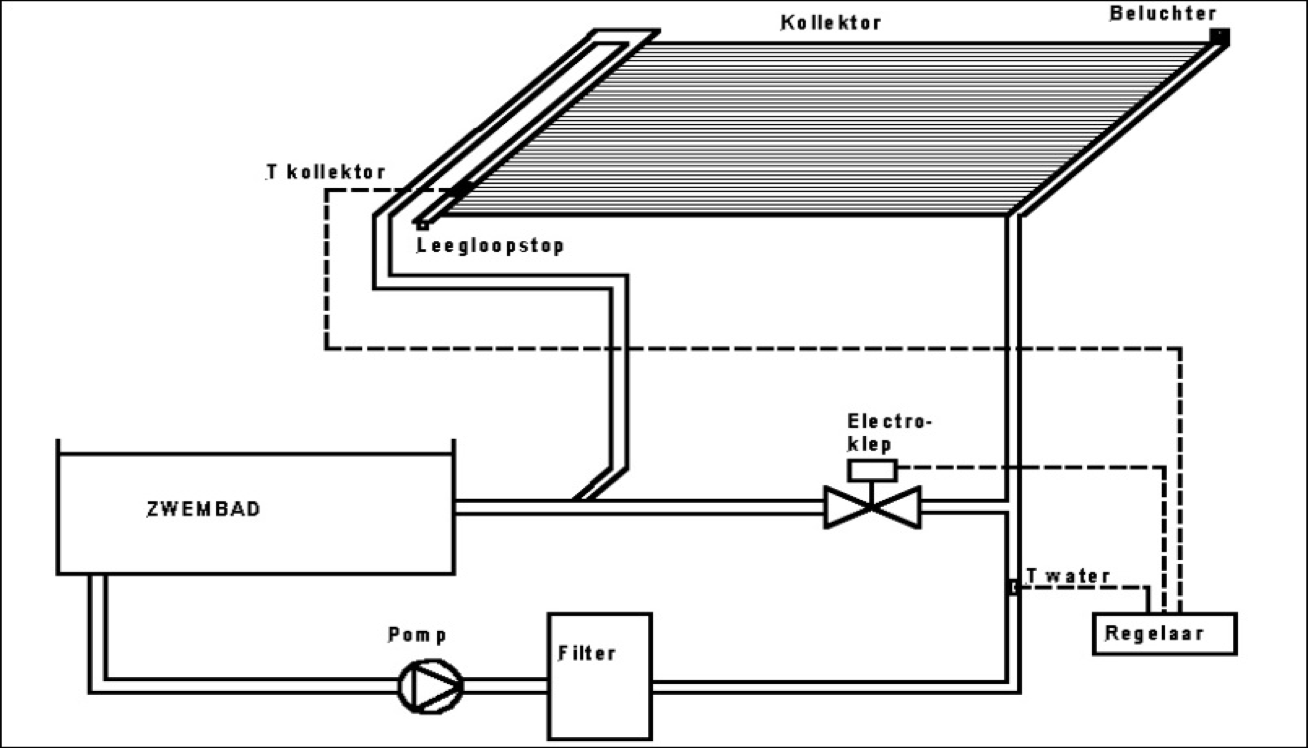

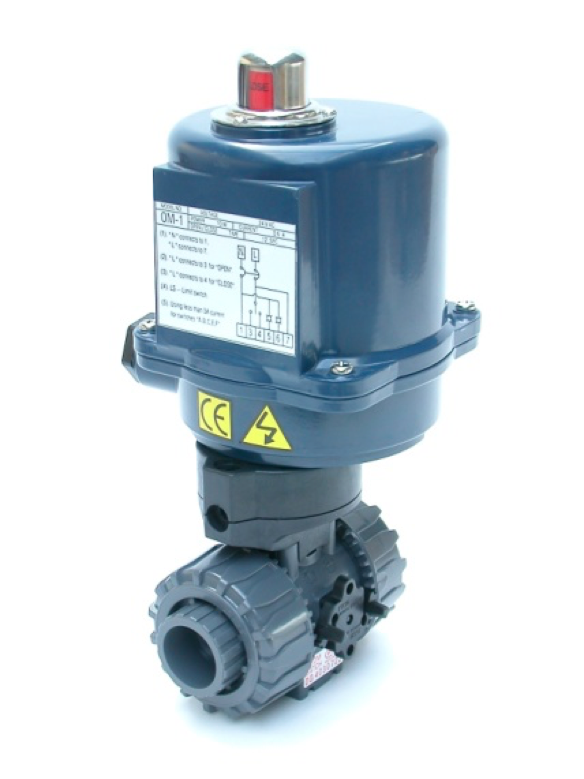

2 WAY 63
ATTENTION : This solution is only effective if the solar panels are placed only a few meters higher than the filter installation. An electrical 2 way valve in combination with a control box is placed in the circuit of the filter installation, sending the water after the filter directly to the pool or first to the solar panels. A bypass-valve is recommended in order to regulate the flow going through the solar panels.

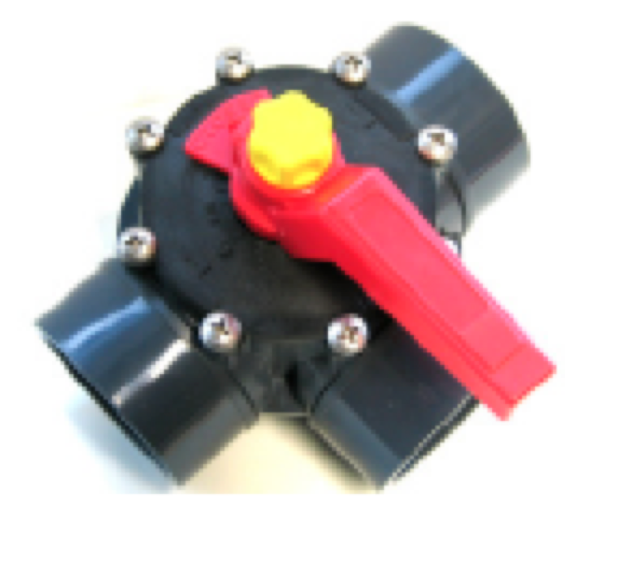

3 WAY 50 MANUAL
We do not recommend this solution. If you forget to turn off the panels when the outside temperature is low, there is a big risk of cooling the pool water. That’s why we recommend using an automated version!
