Top mount:

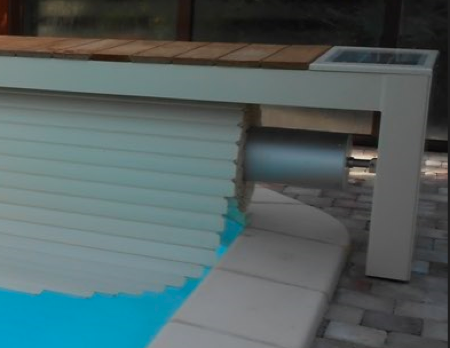

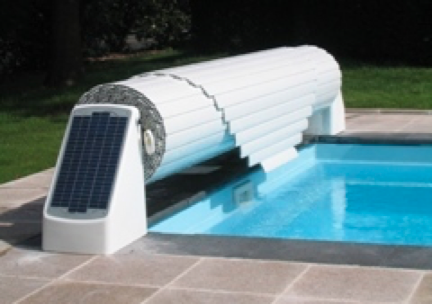

- EcoTop with photovoltaic solar panel
This in-roller 24V motor is used for EcoTop top mounted slat covers. The motor is mounted in the roller shaft above water surface. The power is supplied by a photovoltaic solar panel in combination with 2x 12V batteries and a regulator.
- EcoTop
This in-roller 24V motor is used for EcoTop top mounted slat covers. The motor is mounted in the roller shaft above water surface. The power is supplied by a transformer and rectifier 230V-24V to be installed in the plant room.

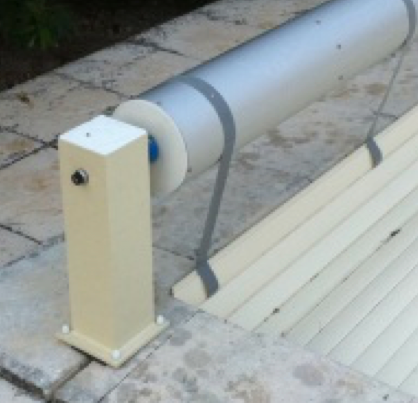

- Top’Moov
This tubular 24V motor is used for Top’Moov top mounted slat covers. The motor is mounted in the roller shaft above water surface. The power is supplied by a photovoltaic solar panel in combination with 2x 12V batteries and a regulator. Optionally you can order a emergency power supply (recommended for indoor pools). The Top’Moov mobile cover is installed on tracks.
- External motor

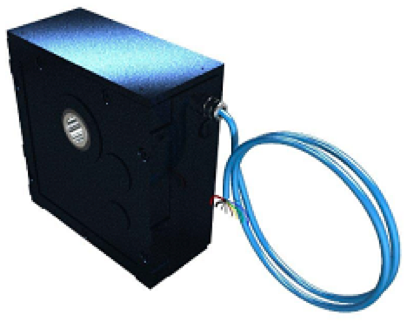

AquaTop external motor in combination with our universal control box.
Underwater mount:

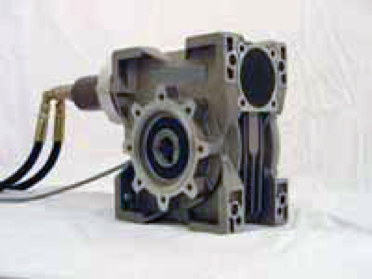

- Hydraulic external
The axe is driven by a hydraulic motor. It is necessary to provide a wall duct and a motor pit. The hydraulic motor is situated in the motor pit next to the pool. The hydraulic pump is situated in the plant room.
- Electric external
The axe is driven by an external electric 24V motor. It is necessary to provide a wall duct and a motor pit. The electric motor is situated in the motor pit next to the pool. The universal control box is situated in the plant room.

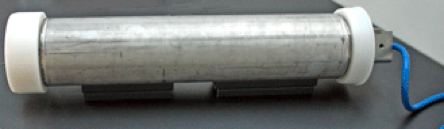

- In-roller motor (SCUBA)
A motor pit is not necessary because the 24V tubular motor is situated inside the roller shaft. By use of a wall duct the motor cable goes through the pool wall. The universal control box is situated in the plant room.
