Possibilties underwater mount scuba:
- Wall duct
- Folded panel
- Flat panel
- Deep panel mounting
- Folded panel for dividing wall

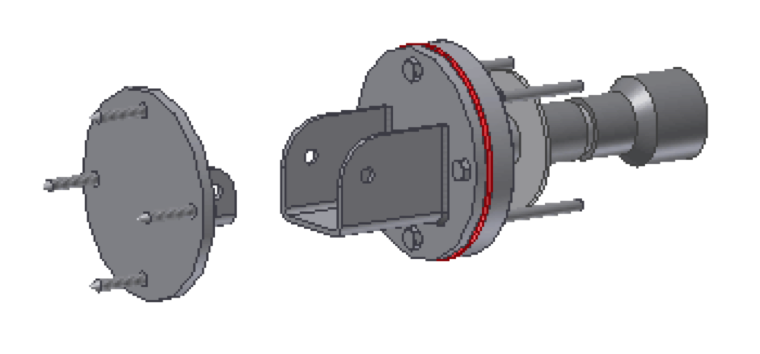

WALL DUCT
The flanges can be pre-mounted when concreting the pool or fixed onto the finished pool shell. The cable goes through the wall to the connection box.

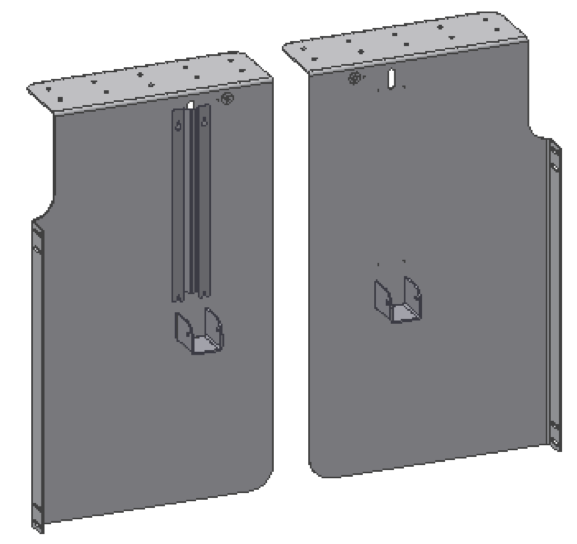

FOLDED PANEL
The panels are mounted on top of the pool wall. A plate prevents the cable from obstructing the slats.

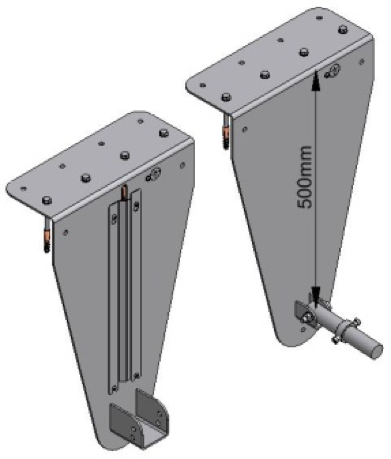

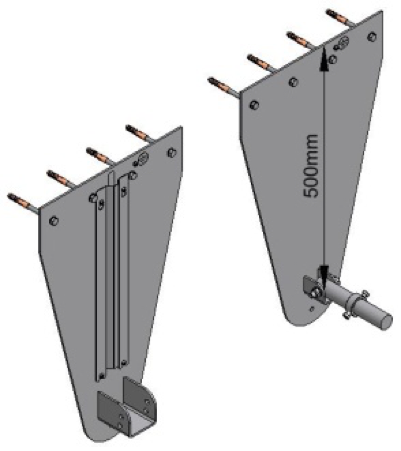

FLAT PANEL
The panel will be mounted against the pool wall. A plate prevents the cable from obstructing the slats.

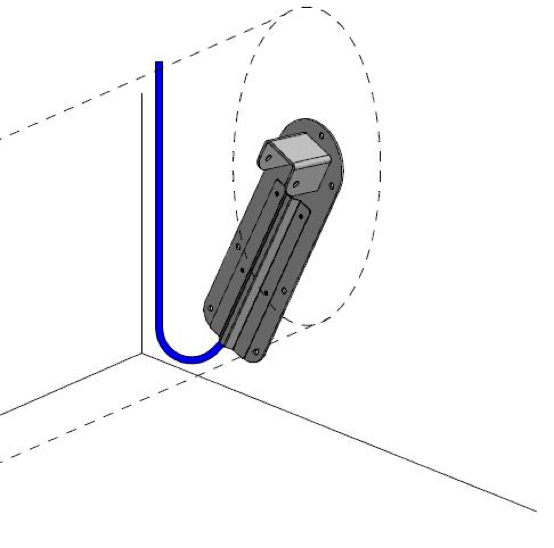

DEEP PANEL MOUNTING
A bracket is installed on the pool floor and the cable goes up in the pool corner.
FOLDED PANEL FOR DIVIDING WALL
The panels are mounted on top of the pool wall. A plate prevents the cable from obstructing the slats. A panel in PVC or fibreglass can be installed directly on these plates creating a separate cover pit.
